Course: Advanced Distributed System Design - Udi Dahan

April 9th, 2020



Course: Advanced Distributed System Design - Udi Dahan



Table of Contents

Course Curriculum

Important info about the course

Fallacies of Distributed Computing

Coupling

Intro to messaging

Exercise: selling messaging to your organization

Messaging patterns

Architectural styles: Bus and Broker

Intro to SOA

Exercise: services modelling

Advanced SOA

CQRS

SOA: operational aspects

Sagas/Long-running business processes modelling

Exercise: saga design

SOA: modelling

Organizational transition to SOA

Web Services and User Interfaces



fallacy 11

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

[ ] Article: "4+1 views of software architecture"






no description for image available

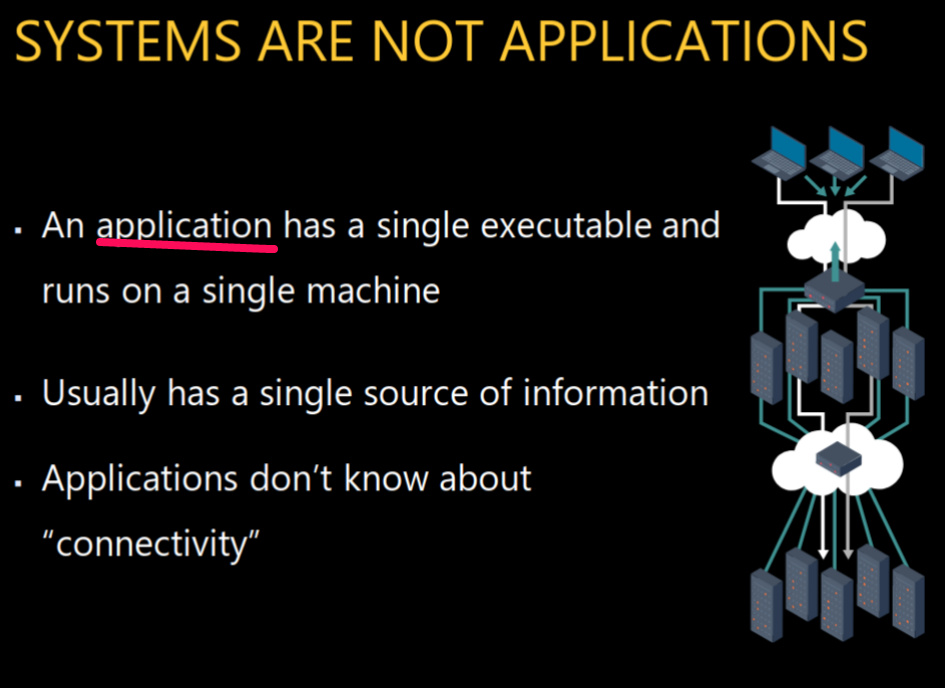

def: Application

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

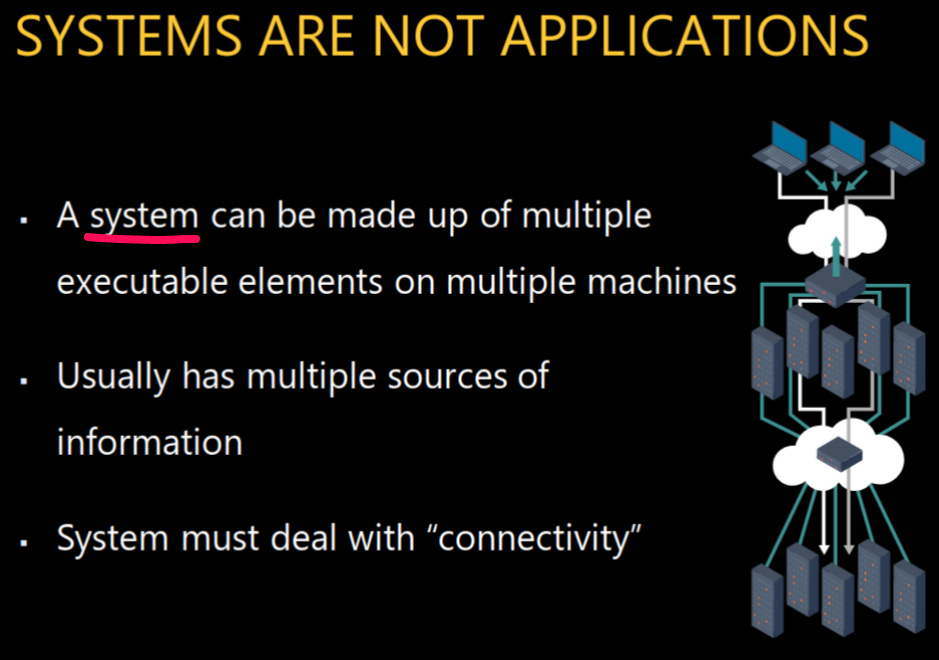

def: System

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

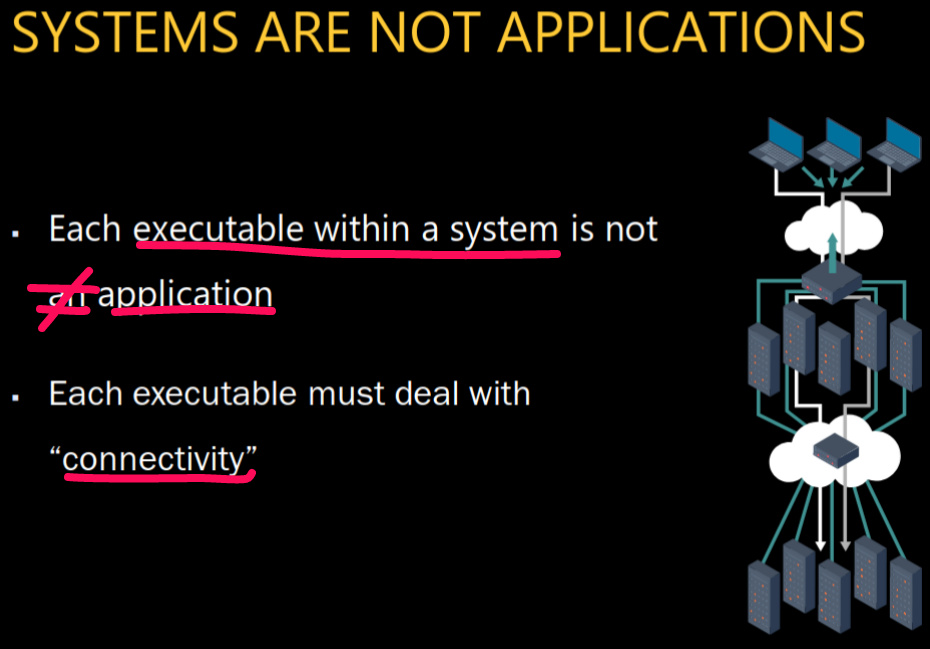

application !-> connectivity

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

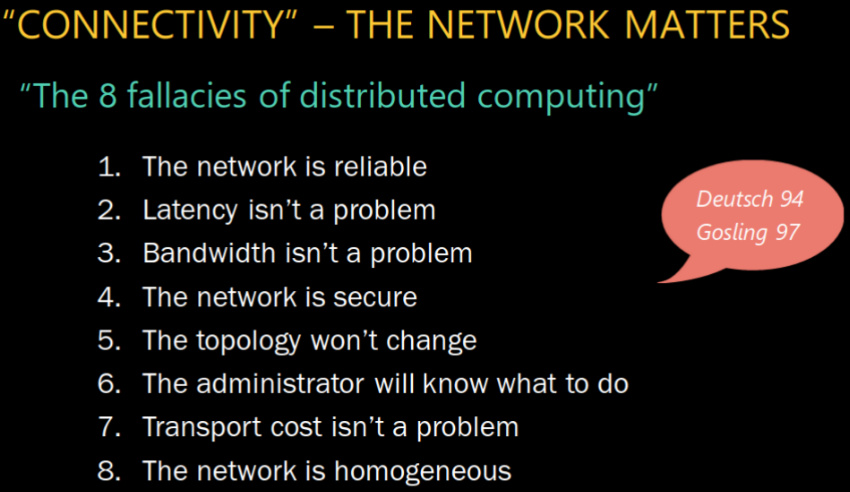

8 fallacies of distributed computing

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

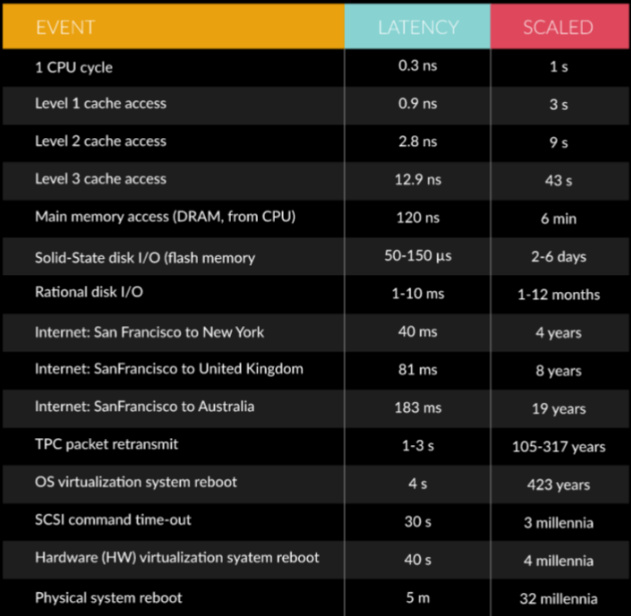

latency table

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

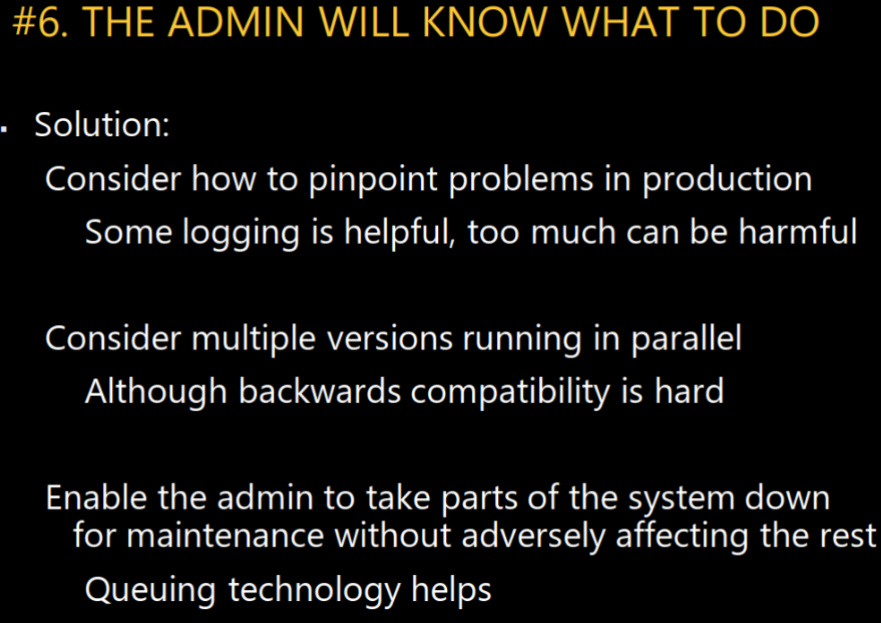

backward compatibility is a requirement for CD

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

unless you have multiple versions & backward compatibility, dont do CD



CD will become Cdowntime






no description for image available

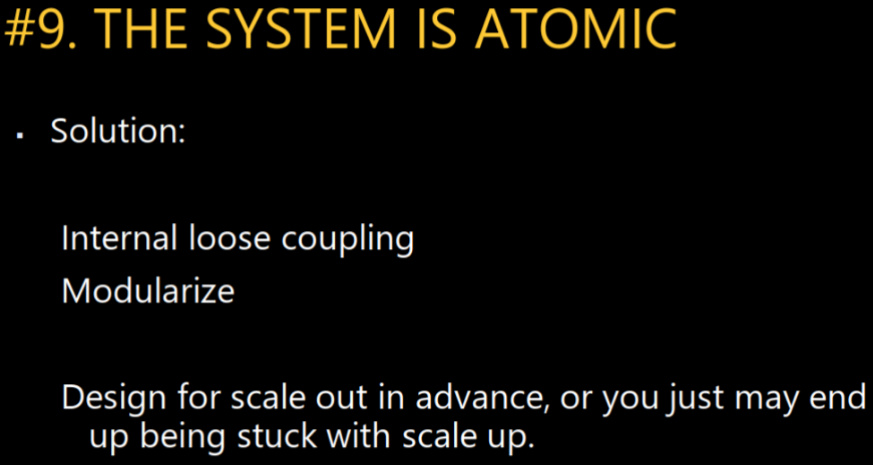

functionally separate vs physically separate

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

functionally separate vs physically separate







you can deploy monolith what is logically decoupled






no description for image available



Product vs Project

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

maintenance is a bad metaphor, project is better







maintenance: less skill needed, no big architecture changes






no description for image available

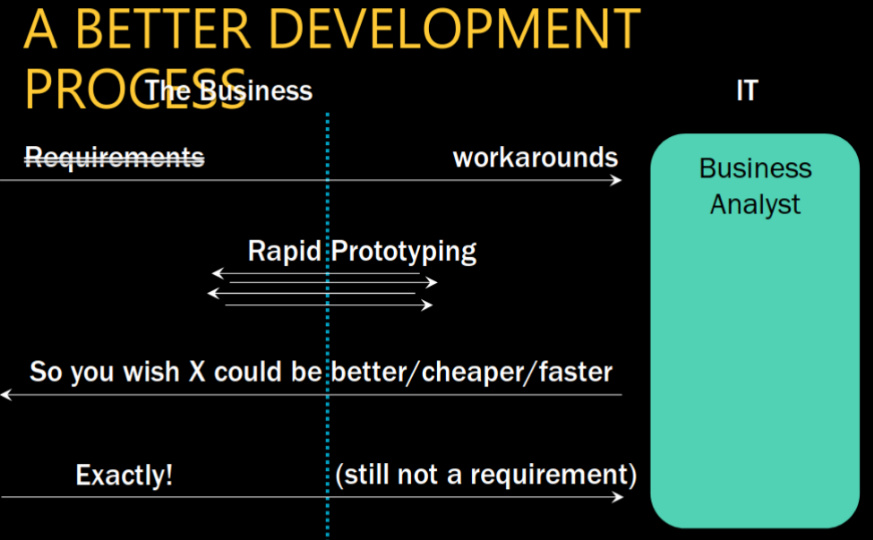

role: Business Analist

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available



role: Architect

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

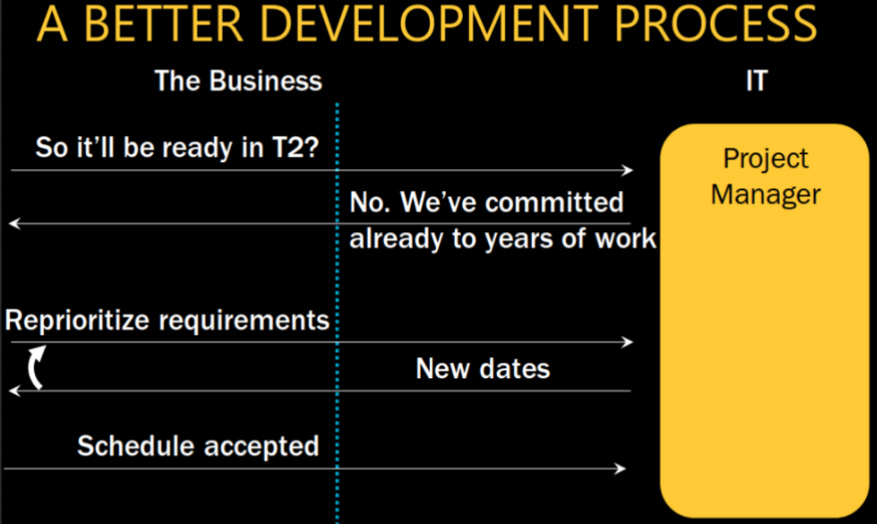

role: Project Manager

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

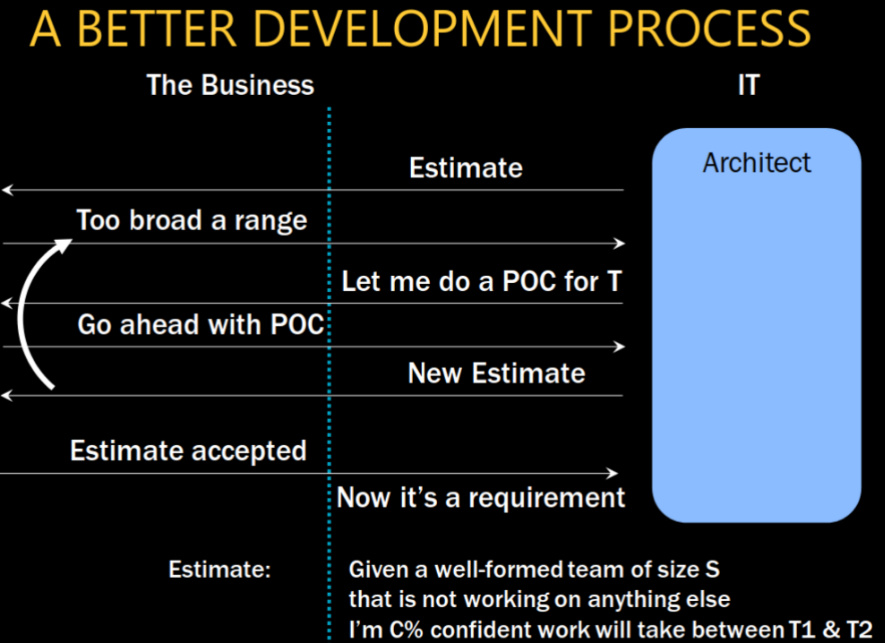

Estimates

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

Given a



- well-formed team



(worked together)



- with required skills



(has done such things before)



- of size S






no description for image available

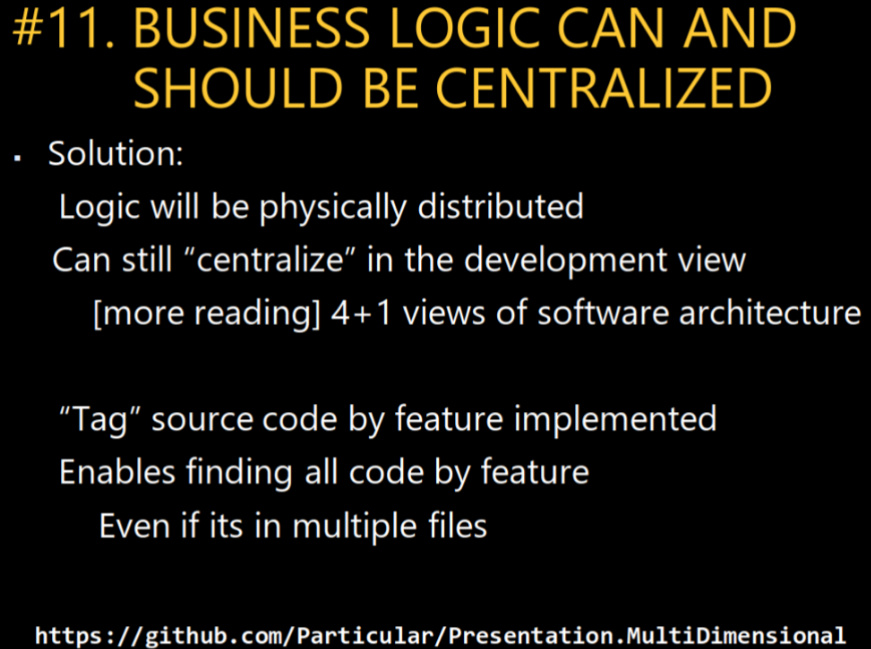

decentralize business logic

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

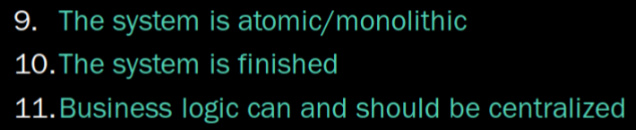

3 more fallacies

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

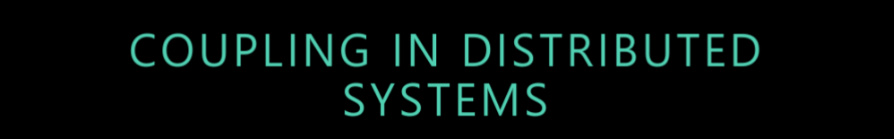

Coupling

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

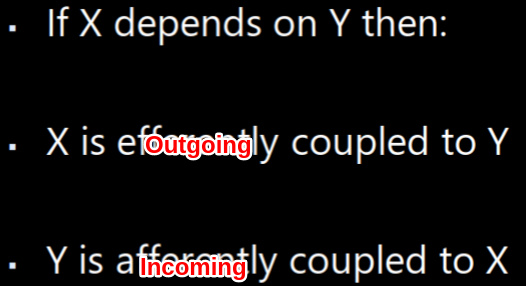

incoming vs outgoing coupling

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

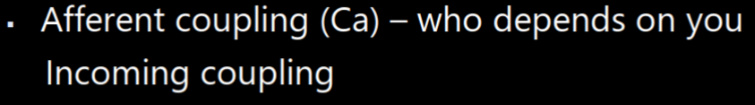

def: incoming coupling

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

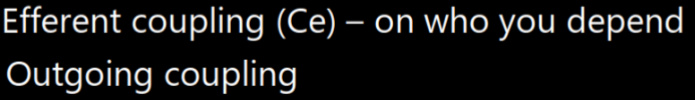

def: outgoing coupling

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

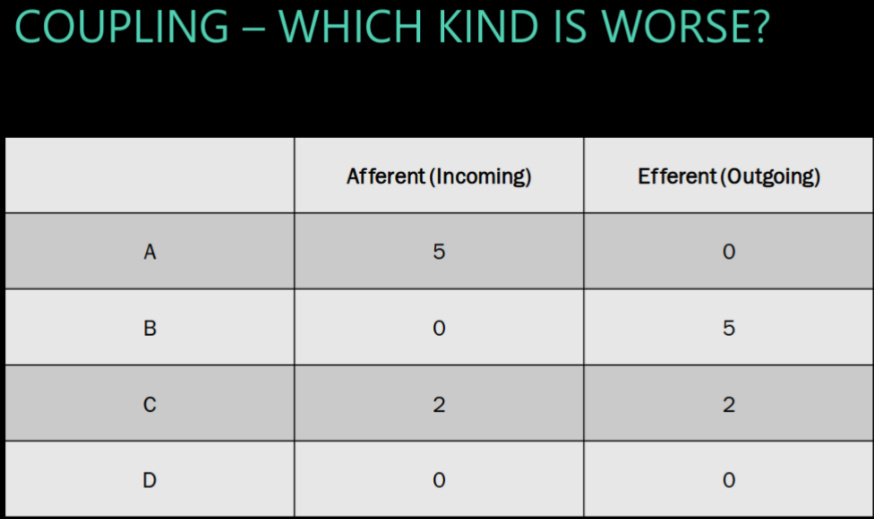

clarity: incoming vs outgoing

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

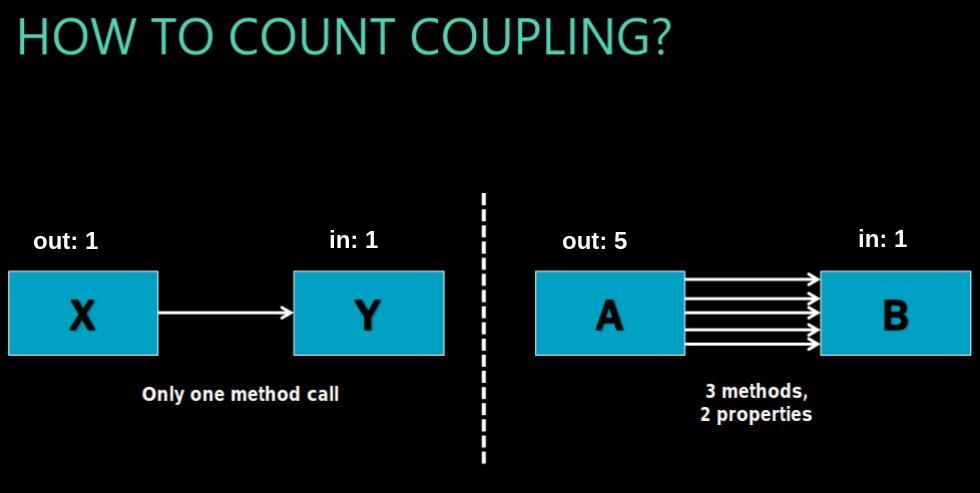

count coupling

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

X->Y



x outboing 1



y incoming 1







A->B



x outgoing 5 "is this class single responsibility principle"



y incoming 1 "how many classes do I have to change"











static analysis tool






no description for image available

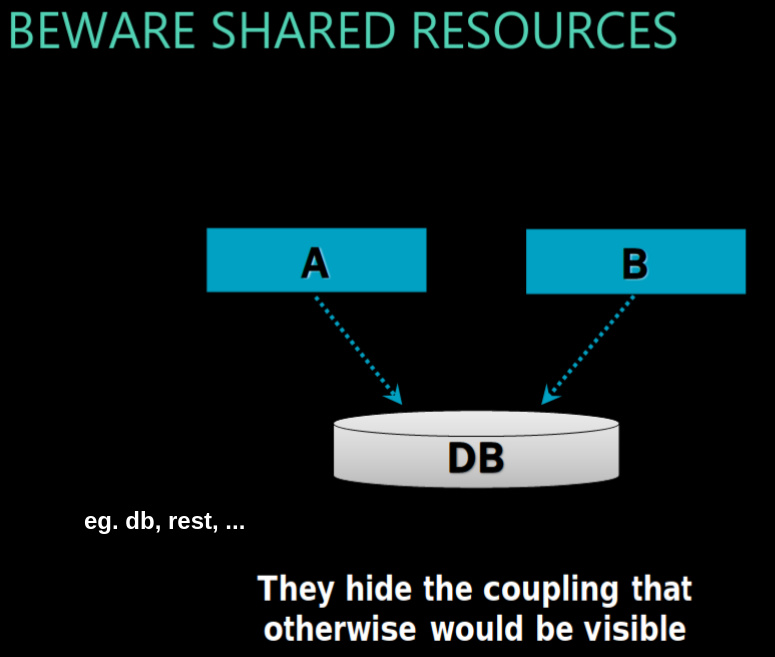

hidden coupling

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

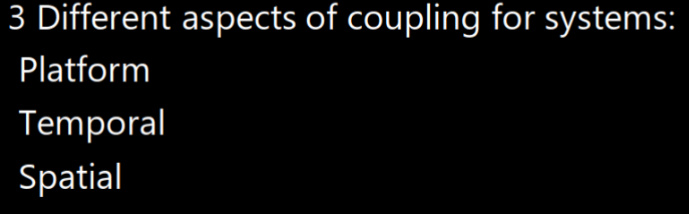

3 aspects of coupling

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

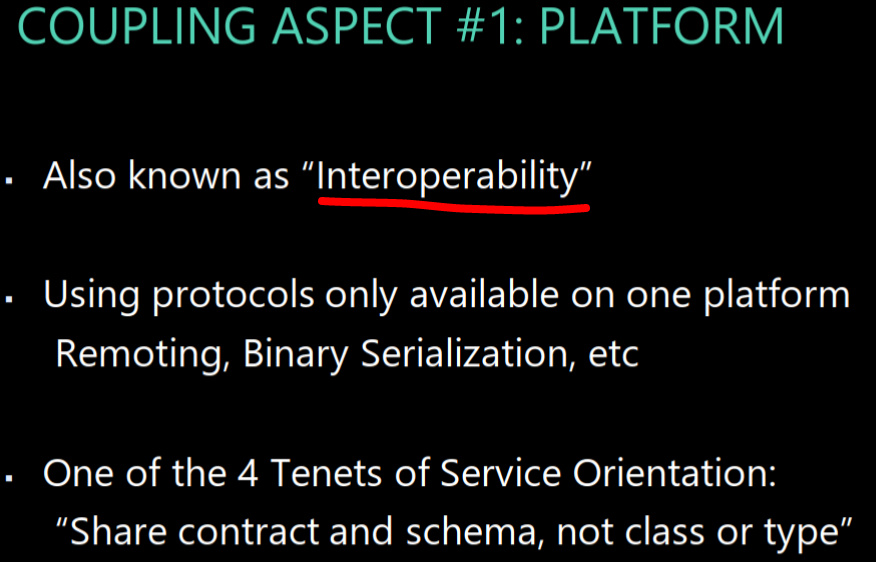

aspect 1: platform (aka interoperability)

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available



text-based representation on the wire

http, smtp, udp, ...





soap / wsdl / rest

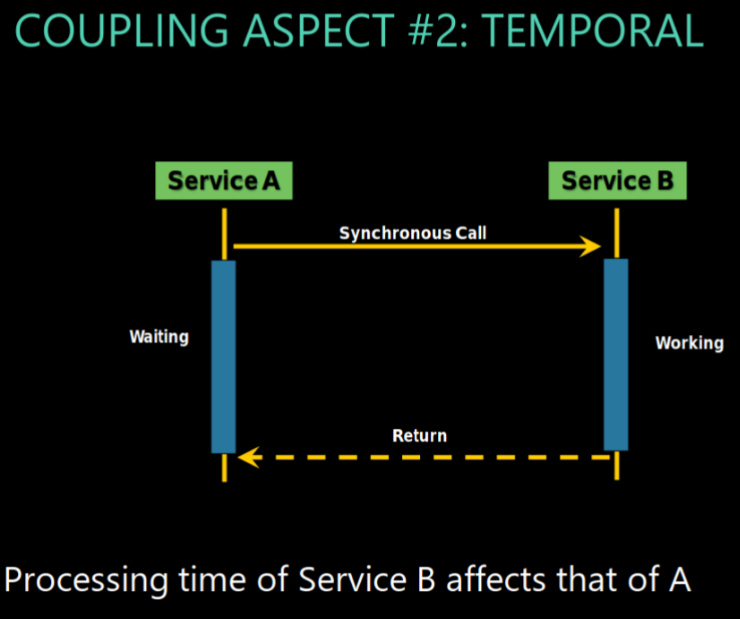

apect 2: time

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available



aspect time: Pub-Sub explicit caching

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

make explicit in A that caching is happening






no description for image available

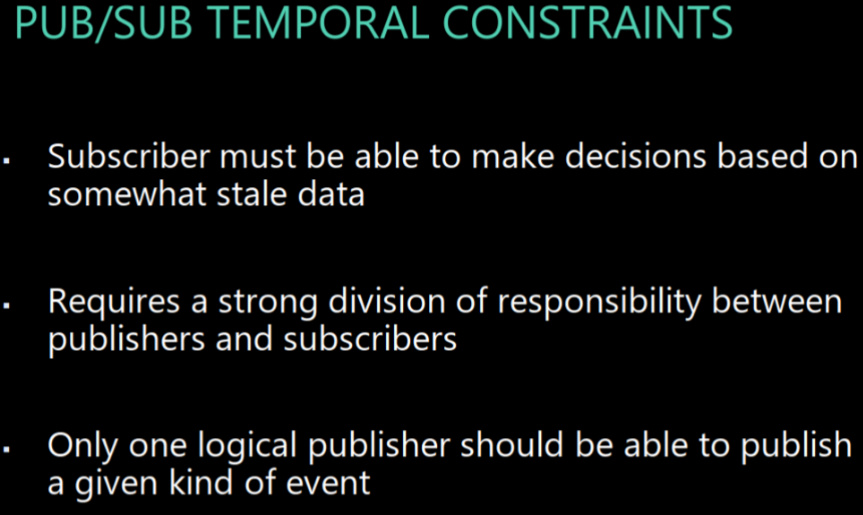

aspect time: Pub-Sub constraints

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

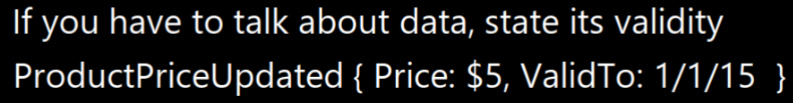

aspect time: Pub-Sub add validity period to data

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

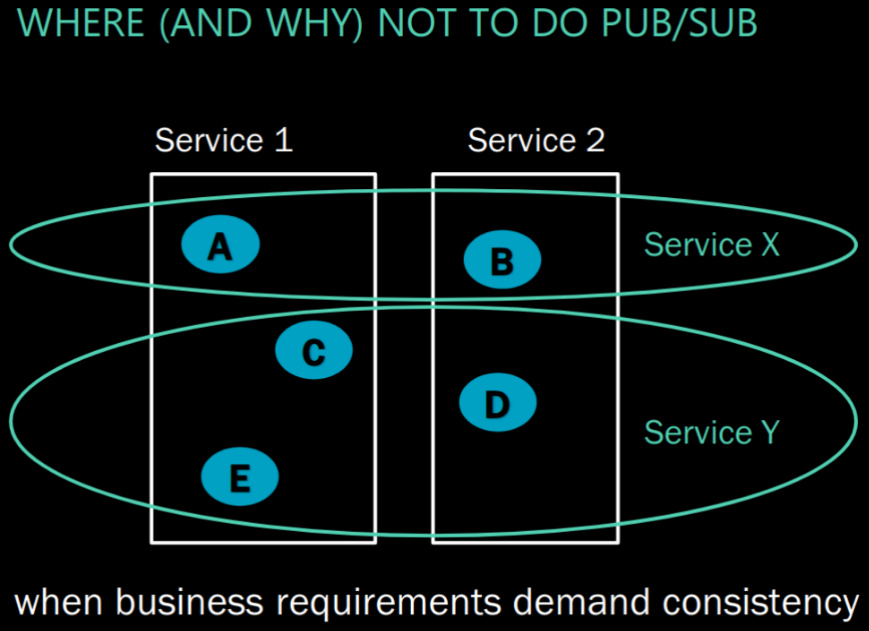

aspect time: Pub-Sub consitency

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





if pub sub not OK time-constraint,



then RPC also not OK (can use cache)



-> transaction across A and B needed






no description for image available



aspect space: routing

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides





no description for image available

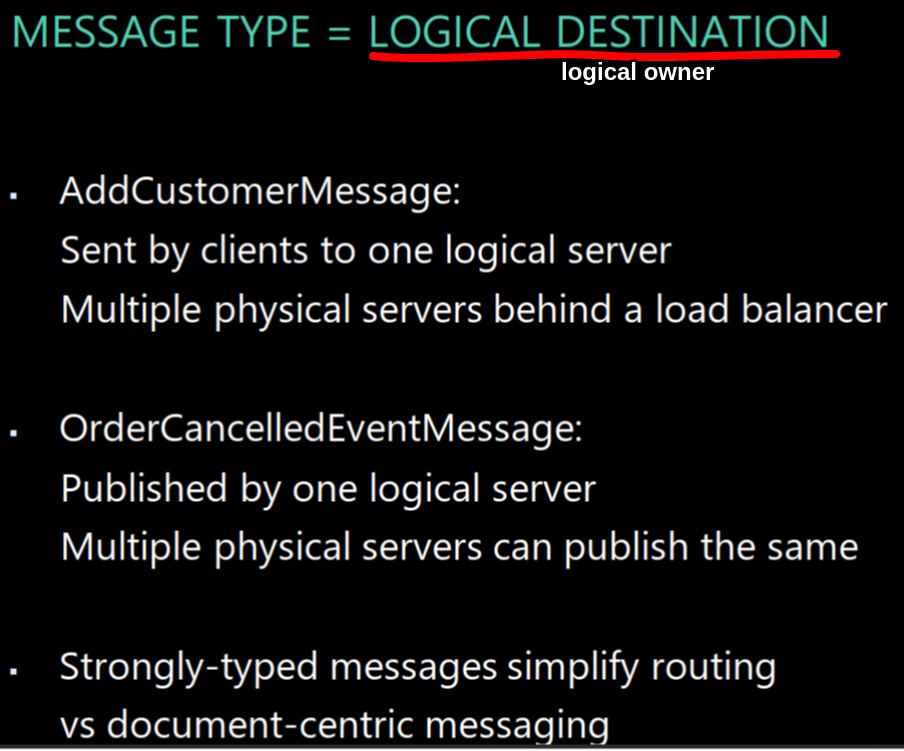

aspect time: logical owner

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

logical owner






no description for image available

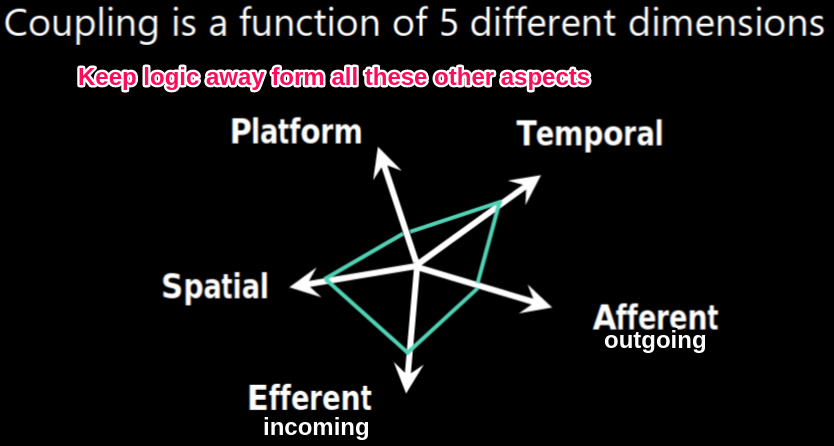

coupling 5 dimensions tradeoffs

Source URL:https://learn.particular.net/courses/take/adsd-online-free/pdfs/11460613-distributed-system-design-slides

tradeoffs between dimensions



per ''layer"



keep LOGIC away from all the other



"is the coupling reasonable for it's responsibility"



eg. fromend webapi, platform low, even if HTTP response which is time high coupling



internal component: low temporal at cost of higher platform (pub-sub platform framework)






no description for image available
